Versatile Work Platforms for Comprehensive Highway Bridge Assessments
This purpose-built bridge inspection solution combines a SINOTRUK HOWO chassis with an XCMG aerial working system, engineered to provide stable access, precise control, and reliable performance for elevated infrastructure maintenance.

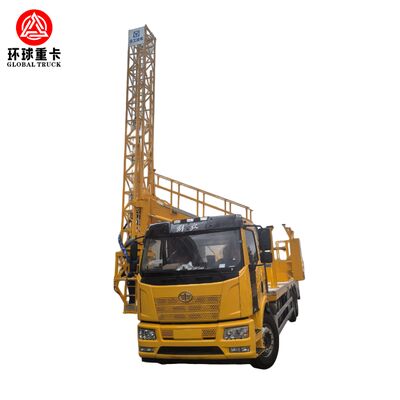

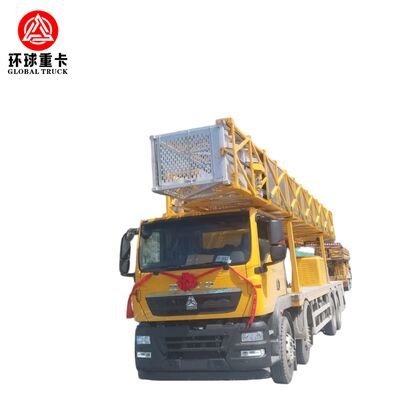

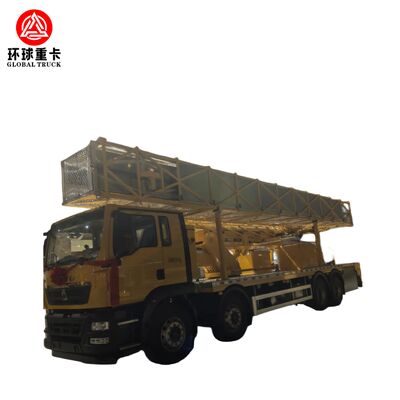

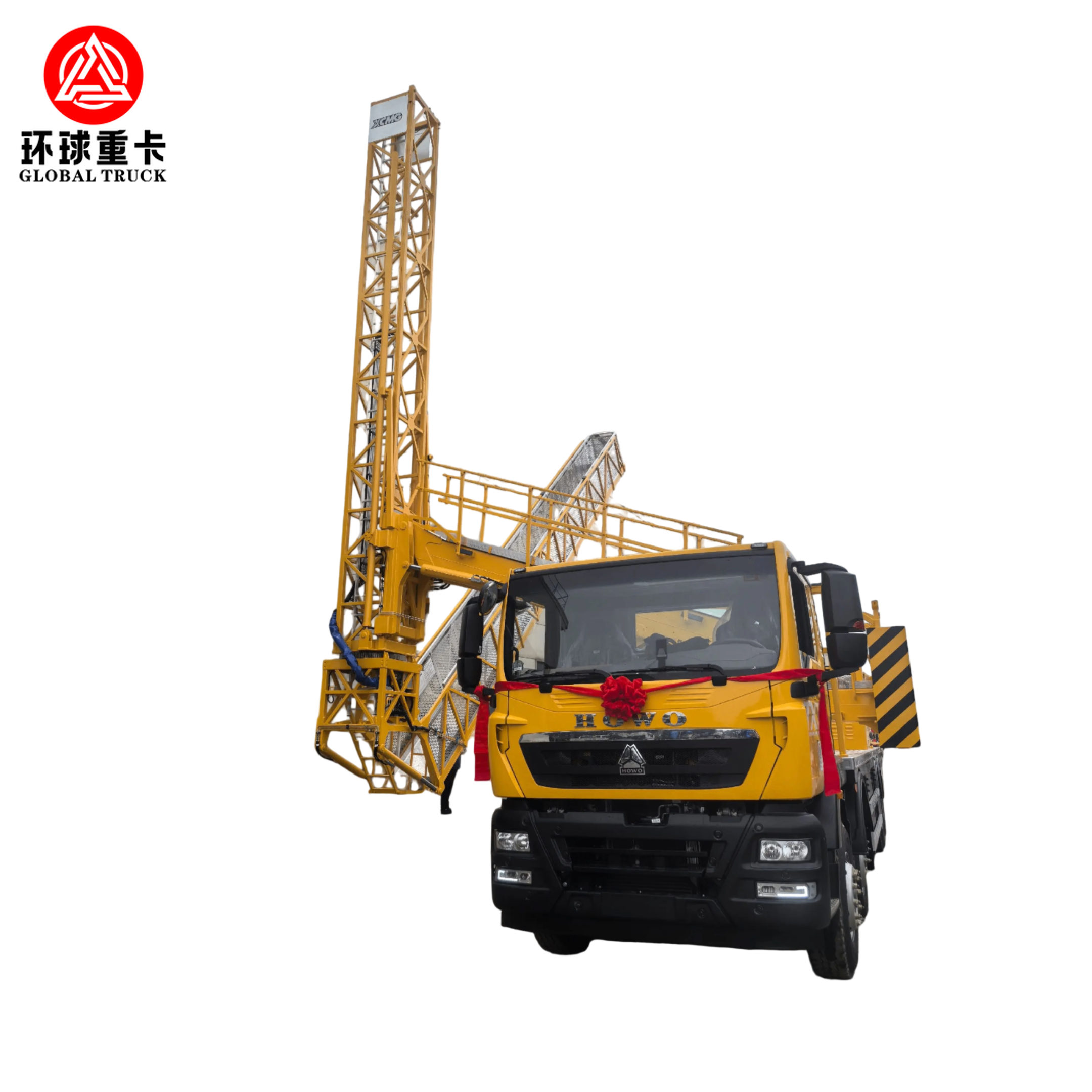

Bridge Inspection Truck (XCMG Upper + SINOTRUK HOWO Chassis)
Core Technical Parameters
Chassis Parameters
- Brand: SINOTRUK HOWO
- Drive Type: 4x2 / 6x4
- Engine: Diesel engine (Weichai / SINOTRUK)
- Power Output: 266-420 HP
- Gearbox: 10-speed / 12-speed manual
- Wheelbase: Customizable based on working height
- Emission Standard: Euro II / III / IV / V
- Fuel Tank: 200-400 liters
- Brake System: Full air brake system
Working System Parameters
- Upper Structure Brand: XCMG
- Working Height Range: 12m - 20m
- Working Radius: 8m - 12m
- Platform Load Capacity: 200-400 kg
- Platform Rotation: Optional 360°
- Boom Type: Telescopic or folding structure
- Control: Electro-hydraulic system with multiple control points
Functional Design
The equipment is designed to allow operators to safely access hard-to-reach areas under bridges, along bridge edges, and on complex structural components.
- Smooth lifting and lowering
- Precise positioning of the working platform
- Stable operation during full outreach
- Reduced vibration during operation
Stability and Safety Engineering
The vehicle is equipped with a multi-level safety system that significantly reduces operational risk and improves operator confidence.
- Hydraulic outriggers for stable ground support
- Automatic leveling function
- Anti-tip protection system
- Load and pressure monitoring
- Emergency stop system at multiple control points
- Hydraulic lock for boom safety
- Mechanical and electronic safety interlocks
Operational Efficiency
- Quick deployment and retraction of outriggers
- Centralized control for easy operation
- Reduced need for scaffolding or auxiliary equipment
- Improved efficiency in bridge inspection tasks
- Suitable for continuous daily operation
Maintenance and Service
- Standardized components for easier maintenance
- Hydraulic and electrical systems designed for durability
- Easy access to key components for servicing
- Spare parts availability ensured
- Simple troubleshooting with technical guidance
Applicable Working Environments
- Highways and expressways
- Urban bridge structures
- Overpasses and flyovers
- Railway bridge systems
- Municipal infrastructure projects
- Government maintenance programs
Competitive Advantages
- Lower overall ownership cost
- Higher operational stability
- Easier operator training
- Strong adaptability to different countries
- Mature and proven configuration
- Better balance between price and performance
Production Capability
- Stable production line with experienced engineering team
- Strict quality inspection before delivery
- Standardized assembly process
- Flexible customization according to client requirements
- Strong export experience to Africa, Southeast Asia, and Middle East
Export Experience
This model is widely exported to markets including Africa, Southeast Asia, South America, and Middle East. It is suitable for countries with complex road conditions and developing infrastructure systems.
Customer Use Experience
- Stable performance during long working hours
- Reliable hydraulic system operation
- Strong chassis performance on poor road conditions
- Safe and smooth operation at height
- Cost-effective solution compared to imported brands
Frequently Asked Questions
What is the key factor when selecting this model?
The required working height and working radius determine the configuration of the boom and chassis.
Can this be used for government projects?
Yes. It is widely used in municipal and infrastructure maintenance projects.
Is installation and commissioning included?
We provide full operation guidance and optional on-site commissioning support.
How do you ensure product reliability?
Through strict testing, including hydraulic pressure testing, load testing, and safety verification.
Can I request a tailored configuration?
Yes. All parameters can be customized according to your working conditions and regulations.
