Shacman F3000 Heavy Duty Dump Truck with Fast 10/12 Transmission High-strength Steel Q345/NM450 and Left/Right Hand Driving

Shacman F3000 Heavy Duty Dump Truck with Fast 10/12 Transmission High-strength Steel Q345/NM450 and Left/Right Hand Driving

  • Shacman F3000 Heavy Duty Dump Truck with Fast 10/12 Transmission High-strength Steel Q345/NM450 and Left/Right Hand Driving
  • Shacman F3000 Heavy Duty Dump Truck with Fast 10/12 Transmission High-strength Steel Q345/NM450 and Left/Right Hand Driving
  • Shacman F3000 Heavy Duty Dump Truck with Fast 10/12 Transmission High-strength Steel Q345/NM450 and Left/Right Hand Driving
  • Shacman F3000 Heavy Duty Dump Truck with Fast 10/12 Transmission High-strength Steel Q345/NM450 and Left/Right Hand Driving
Shacman F3000 Heavy Duty Dump Truck with Fast 10/12 Transmission High-strength Steel Q345/NM450 and Left/Right Hand Driving
Productdetails:
Plaats van herkomst: CHINA
Merknaam: shacman
Certificering: iso,
Modelnummer: F3000
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 pc
Prijs: Onderhandelbaar
Verpakking Details: Naakt
Levertijd: 40 Worker Days
Betalingscondities: L/c, t/t
Levering vermogen: 500 eenheden/maand
Contact
Gedetailleerde productomschrijving
Model nr.: Shacman F3000 6*4 dumper truck Pk: 380 pk
Besturing: Het linker/Rechtse Drijven Rijwiel: 6*4
Tractietype: Snel 10/12 Airconditioner: Met
Voorwaarde: Nieuw Bestuurstoel: Zitplaats met luchtophanging
Markeren:

Fast 10/12 Transmission Heavy Duty Dump Truck

,

High-strength steel Q345/NM450 Dumper Truck

,

Left/Right Hand Driving Tipping Truck

High Quality China Shacman F3000 Heavy Dump Truck 6X4 Drive Wheel Diesel Tipping Truck Dumper Truck

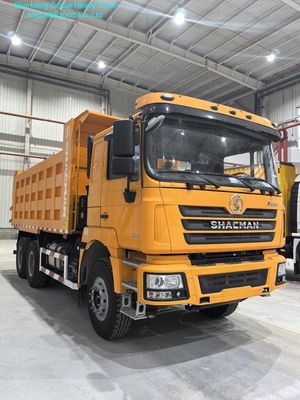

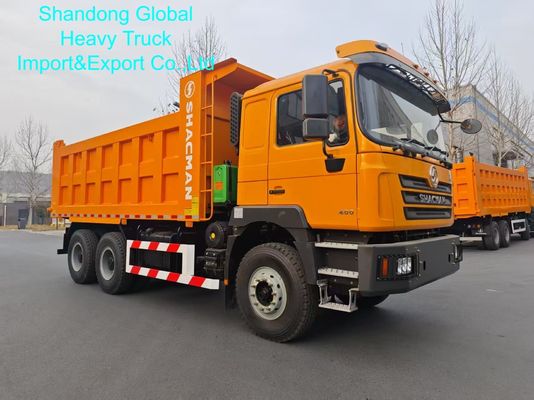

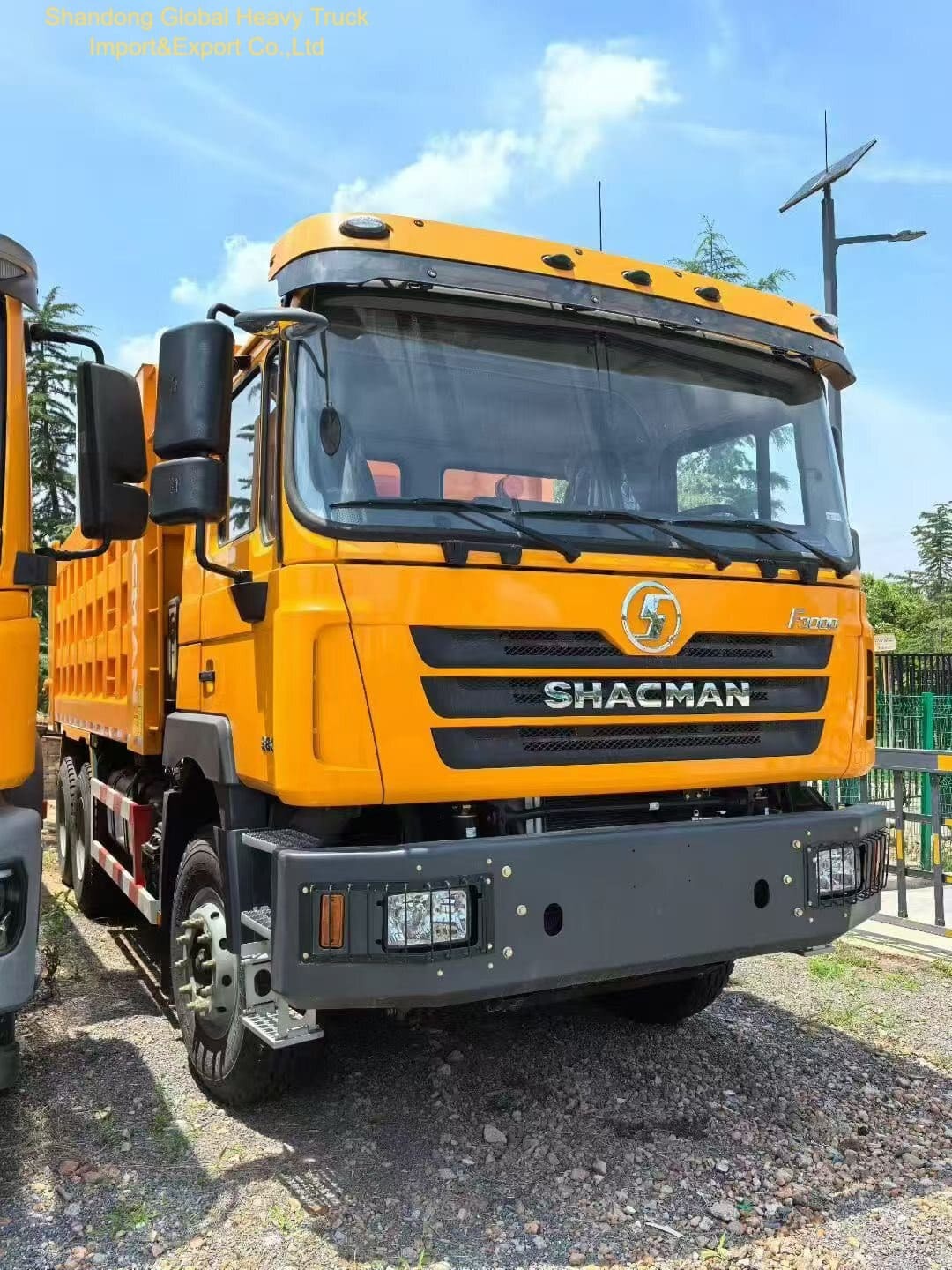

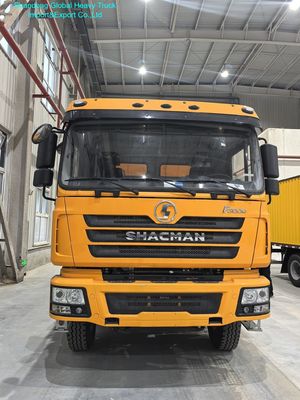

SHACMAN F3000 6×4 Dump Truck

The SHACMAN F3000 6×4 Dump Truck is a strong and durable heavy-duty vehicle designed for the toughest working conditions. With its powerful engine, robust chassis, and large payload capacity, it is widely used in construction, mining, and infrastructure projects.

Main Specifications
  • Brand: SHACMAN
  • Model: F3000 6×4 Dump Truck
  • Drive Type: 6×4 (Left or Right Hand Drive available)
  • Engine: Weichai WP10 / 380-400 HP, Euro II/III
  • Transmission: Fast 10/12-speed manual gearbox
  • Horsepower Range: 336-400 HP
  • Axles: 7.5T front, 16T rear
  • Suspension: Reinforced multi-leaf spring
  • Frame: Double-layer high-strength steel
  • Fuel Tank: 400 L capacity
  • Braking System: Dual circuit air brake, ABS optional
  • Steering: Hydraulic power steering
Dump Body
  • Type: U-shape or square box
  • Size: 5600-5800 × 2300 × 1500 mm (customizable)
  • Material: High-strength steel Q345/NM450
  • Thickness: 8-10 mm bottom, 6-8 mm sides
  • Payload: 25-30 tons
  • Hydraulic System: Equipped with HYVA lifting cylinder
Dimensions & Weight
  • Overall Dimension (L ×W×H): 8614 × 2490 × 3450 mm
  • Wheelbase: 3775 + 1400 mm
  • Curb Weight: 12,500-13,000 kg
  • Gross Vehicle Weight: 25,000-30,000 kg
  • Max Speed: 80-90 km/h
Key Advantages
  • Strong climbing ability, suitable for off-road and rough conditions
  • Reliable performance for long-term heavy-load operations
  • Large loading capacity, ideal for sand, gravel, stone, and ore
  • Easy maintenance and spare parts available worldwide
  • Cost-effective solution for contractors and fleet operators
FAQ
Q1: What is the fuel consumption?

Fuel consumption is around 35-38 liters per 100 km, depending on road conditions and load.

Q2: Can the body size be customized?

Yes, we can design the cargo box size, thickness, and steel material according to customer needs.

Q3: What warranty do you provide?

Standard warranty covers 1 year or 100,000 km. Extended service is available.

Q4: Is it suitable for mining and quarrying?

Yes, with its reinforced chassis and durable cargo body, it is widely used in mining operations.

Q5: How soon can it be delivered?

Usually within 30-40 days after confirming the order.

SHACMAN F3000 6×4 Dump Truck in operation at a mining site

label:

de vrachtwagen van de bouwstortplaats,

op zwaar werk berekende kippersvrachtwagens,

de vrachtwagen van de zandstortplaats
